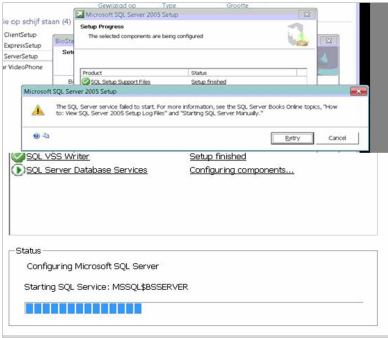

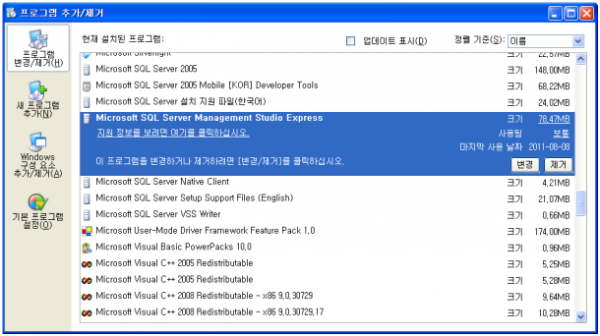

Old revisions Add to book Export to PDF Table of Contents SQL Server failure under Windows 7 64 bits Error message Check for the missing program Install all relevant program (1) Install all relevant program (2) Run DB Setup.exe Check [SQL Server Configuration Manager] Change server service status Run Microsoft SQL Server Management Studio Express Run DB Setup.exe Check for BioStar database Run Biostar Server Config Book Creator Add this page to your book Book Creator Remove this page from your book Manage book (0 page(s)) Help BioStar 1, Windows 7, SQL SQL Server failure under Windows 7 64 bits Occasionally, BioStar installation stops during BioStar ExpressSetup and BioStar ServerSetup. In this document, we will guide you how to resolve the problem when Microsoft SQL 2005 Setup fails under Windows 7 64 bits. Error message Please check if you get one of these error messages below (Figure 1). The SQL Server service failed to start for more information, see the SQL Server Books online topics, “How to : View SQL Server 2005 Setup Log Files” and “Start SQL Server Manually.” [Figure 1] Check for the missing program 1. Go to Control Panel > Uninstall a program. Make sure all below files are installed. Microsoft SQL Server 2005 Microsoft SQL Server Management Studio Express Microsoft SQL Server Native Client Microsoft SQL Server Setup VSS Writer If there is any program missing, please go to next section. If no, please go to Run DB Setup.exe. [Figure 2] Install all relevant program (1) 1. Install Microsoft SQL Server 2005 Express Edition Service Pack 4. Supported Operating System: Windows 2000 Service Pack 4, Windows 7, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Vista, Windows XP Download from: https://www.microsoft.com/en-us/download/details.aspx?id=21844 File name: SQLEXPR.EXE Install all relevant program (2) 1. Install Microsoft SQL Server Management Studio Express 64bit. Download from: http://www.microsoft.com/en-us/download/details.aspx?id=8961 File name: SQLServer2005_SSMSEE_x64.msi Run DB Setup.exe 1. Go to [C:\Program Files\BioStar\server] and run [DBSetup.exe]. When DBSetup.exe runs successfully, everything is setup correctly. If not, please check the next step. Usually, you will receive an error message like Figure 3. DBSetup: Cannot connect to SQL Server. [Figure 3] Check [SQL Server Configuration Manager] 1. Go to Start > All programs > Microsoft SQL Server 2005 > Configuration Tool > SQL Server Configuration Manager. Check if the status are Running or Stopped. Figure 4 shows SQL Server (BSSEVER) as stopped. All Servers should be Running. [Figure 4] Change server service status 1. Right click the server then click Properties. 2. Click Start to start the service. [Figure 5. Service status: Stopped] [Figure 6. Service status: Running] Run Microsoft SQL Server Management Studio Express 1. Go to Start > All programs > Microsoft SQL Server 2005 > SQL Server Management Studio Express. 2. Check the Server name and click Connect. Connection should be made. Run DB Setup.exe 1. Go to C:\Program Files\BioStar\server and run DBSetup.exe. 2. Check for the database name. Database name should be same as “Server name” in Run Microsoft SQL Server Management Studio Express. Check for BioStar database 1. Go to Start > All programs > Microsoft SQL Server 2005 > SQL Server Management Studio Express. 2. BioStar folder should be in Databases. [Figure 7] Run Biostar Server Config 1. Click Start to see if BioStar Server runs. [Figure 8. BioStar Server: Stopped] [Figure 9. BioStar Server: Running]
