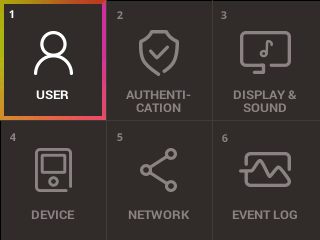

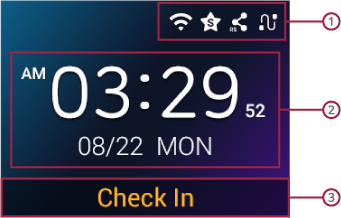

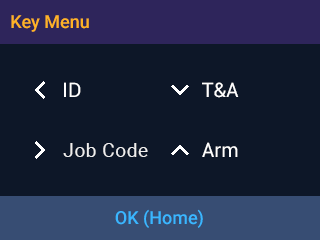

Old revisions Add to book Export to PDF Fold/unfold all Table of Contents BioStation 2a Menu Screen Top Icons Time T&A Code All Menus 1. USER 2. AUTHENTICATION 3. DISPLAY & SOUND 4. DEVICE 5. NETWORK 6. EVENT LOG Key Menu ID T&A Job Code Arm Book Creator Add this page to your book Book Creator Remove this page from your book Manage book (0 page(s)) Help BioStation 2a Menu Screen Top Icons (WLAN): Icon appears when the device is connected to WLAN network. (BioStar 2): Icon appears when the device is connected to BioStar 2. (RS-485): Icon appears when the device is connected through RS-485. (TCP/IP): Icon indicates the status of TCP/IP network. Time Current time is displayed. T&A Code T&A code that is set is displayed. All Menus Press and authenticate with the Admin level credential. If the administrator has not been designated, the menu screen will be displayed when you press . 1. USER You can view enrolled users and also enroll, search, modify, and delete users. 2. AUTHENTICATION You can set Authentication, T&A settings. 3. DISPLAY & SOUND You can change the display and sound settings. 4. DEVICE You can make the detailed settings and more settings of the device. 5. NETWORK You can change the network settings of the device. 6. EVENT LOG You can check the log usage, and search or delete logs. Key Menu Press the OK button, Key Menu screen appears. You can enter the desired menu by pressing the direction button on the Key Menu or home screen. You cannot enter the Key Menu while in Arm mode. Disable Arm mode by pressing the button on the home screen. ID The user can authenticate using ID according to the set schedule. T&A Select T&A event to authenticate. Job Code Select the user’s Job code. Arm The user can set the arming or disarming.
