How To Issue BioStar 2 QR

From BioStar 2.8.11, QR/Bardcode is available to use as BioStar 2 User credential.
X-Station 2 QR models(XS2-QDPB and XS2-QAPB) can read the QR or Barcode and authenticate the user information. By sending an email to users, the users can download QR code on mobile or PC.
A user can have BioStar 2 QR code or third-party QR code/barcode data as a user credential.

You can generate QR code in BioStar 2 system and use it as a user credential as follows.

• Step 1: Set Email Setting in BioStar 2 and enable [QR] option to send the QR code to user emails
• Step 2: Add X-Station 2 QR device to BioStar 2
• Step 3: Go to USER menu and add a new user, update BioStar 2QR with user email
• Step 4: Confirm the email, download the attached QR in the email, or print out the QR

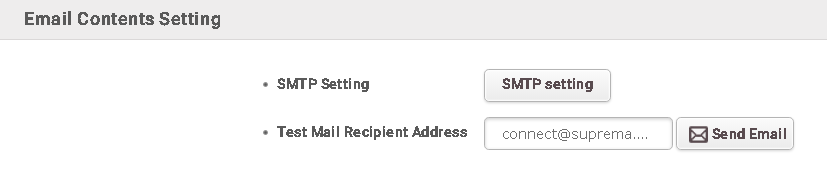

Direction: Settings>EMAIL SETTING>Email Contents Setting

• Unordered List ItemEmail Contents Setting is for Visual Face Enrollment and QR Enrollment only.

Click [SMTP Setting].

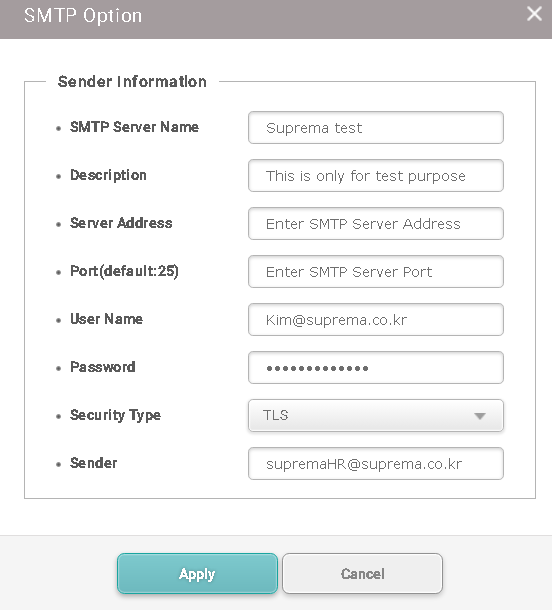

Refer to the SMTP Setting using in the company and update the information correctly.

• Please check Security Type and update the port in accordance with the security type.
• User name and Password must be matched.

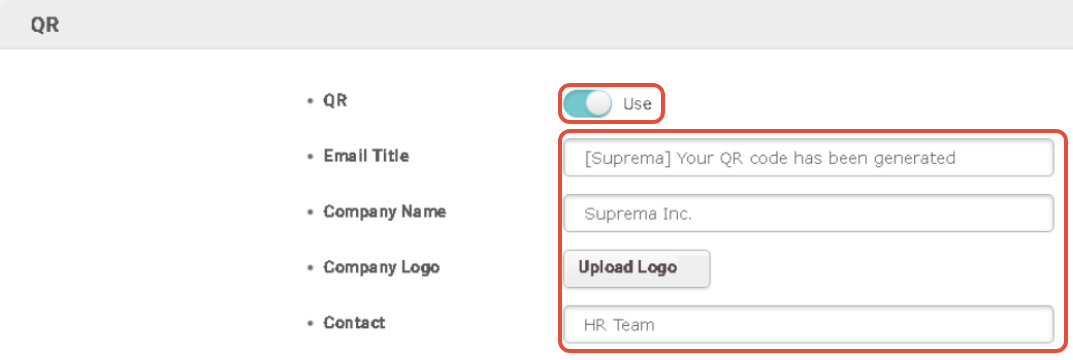

Enable the QR option as follows. and fill in the other contents.

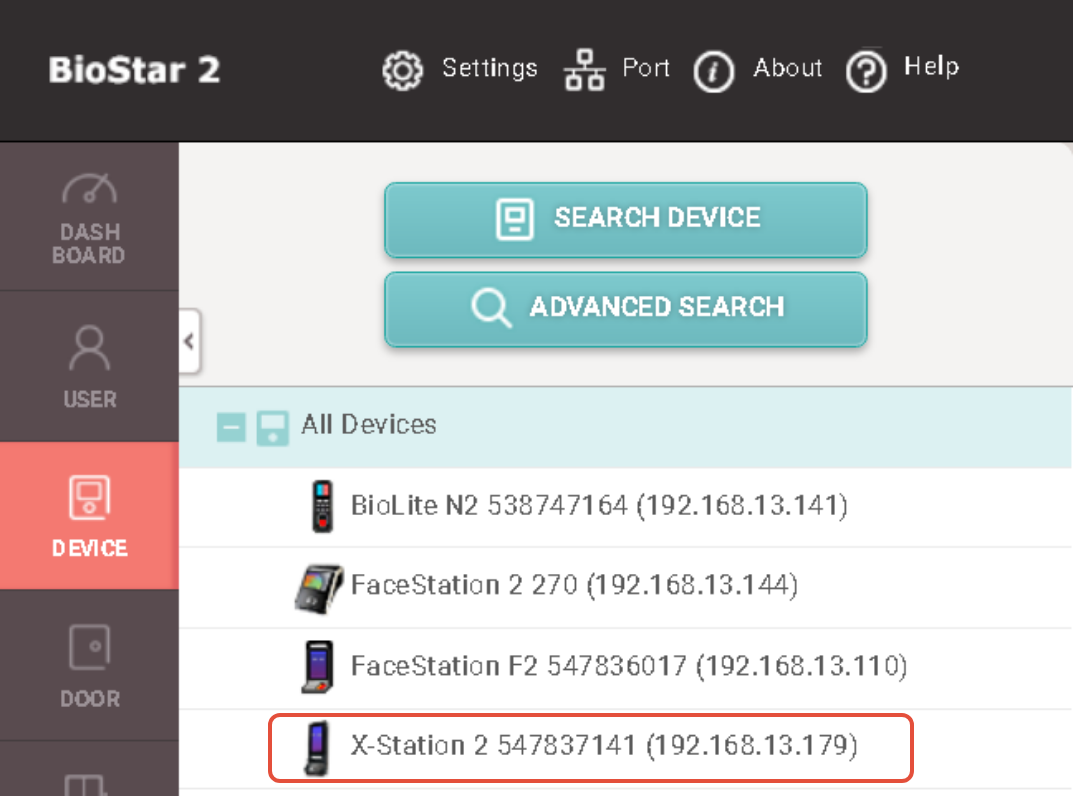

XS2-QDPB and XS2-QAPB are available to scan QR or Barcode. Please check the product name and add the device to BioStar 2.8.11 or above.

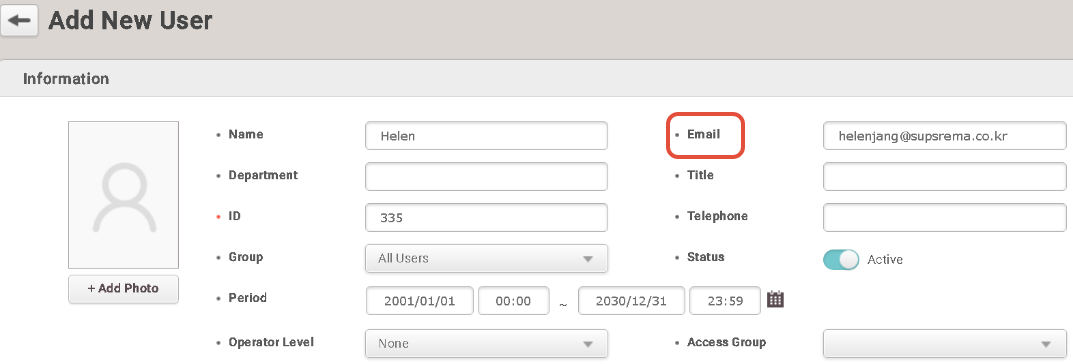

To generate the BioStar 2 QR code, go to USER. Add a new user and add the Email.

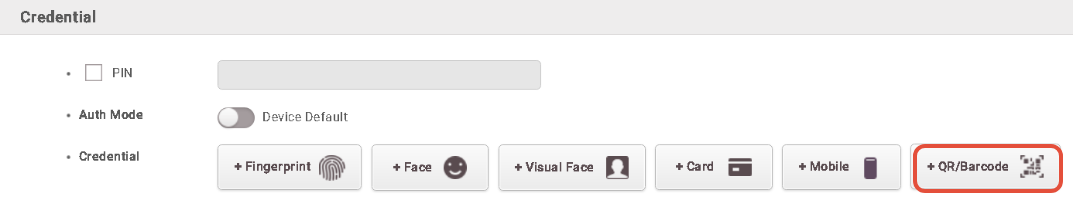

Click [QR/Barcode] in Credential.

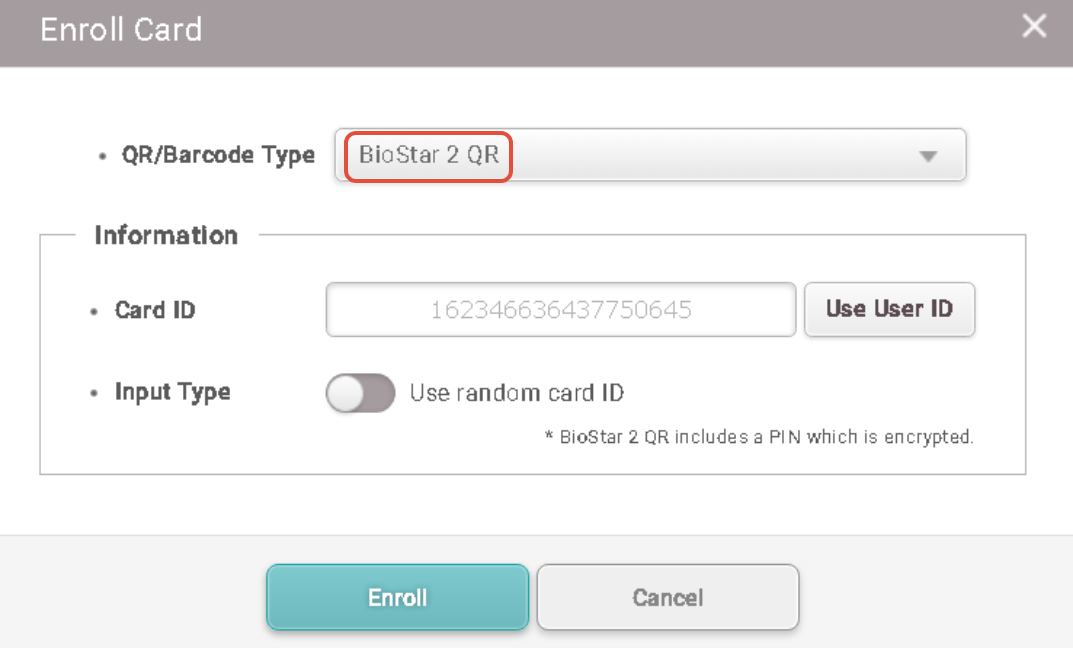

Select BioStar 2 QR and click [Enroll].

• Unordered List ItemYou can select Input Type as random card ID or manual ID input.

Click [Apply] to save the user data.

• At this time, the user receives the email from BioStar 2 and BioStar 2 synchronizes the user data to the connected devices.

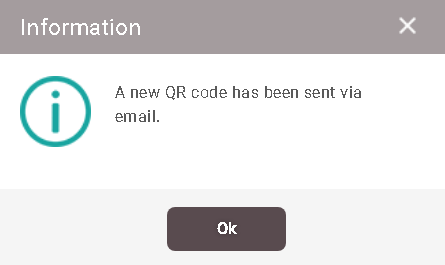

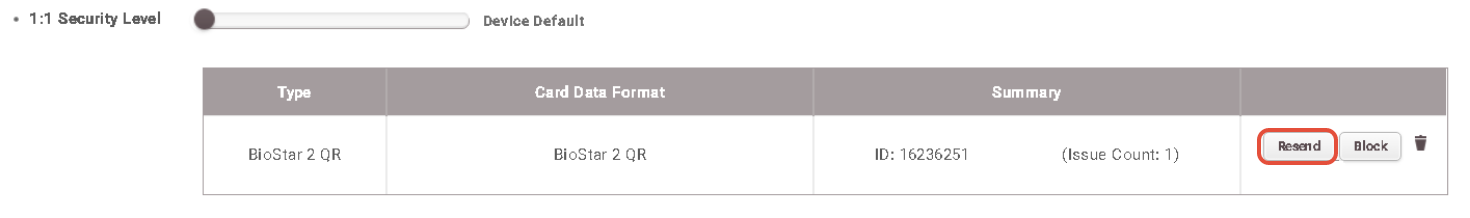

Check the success message.

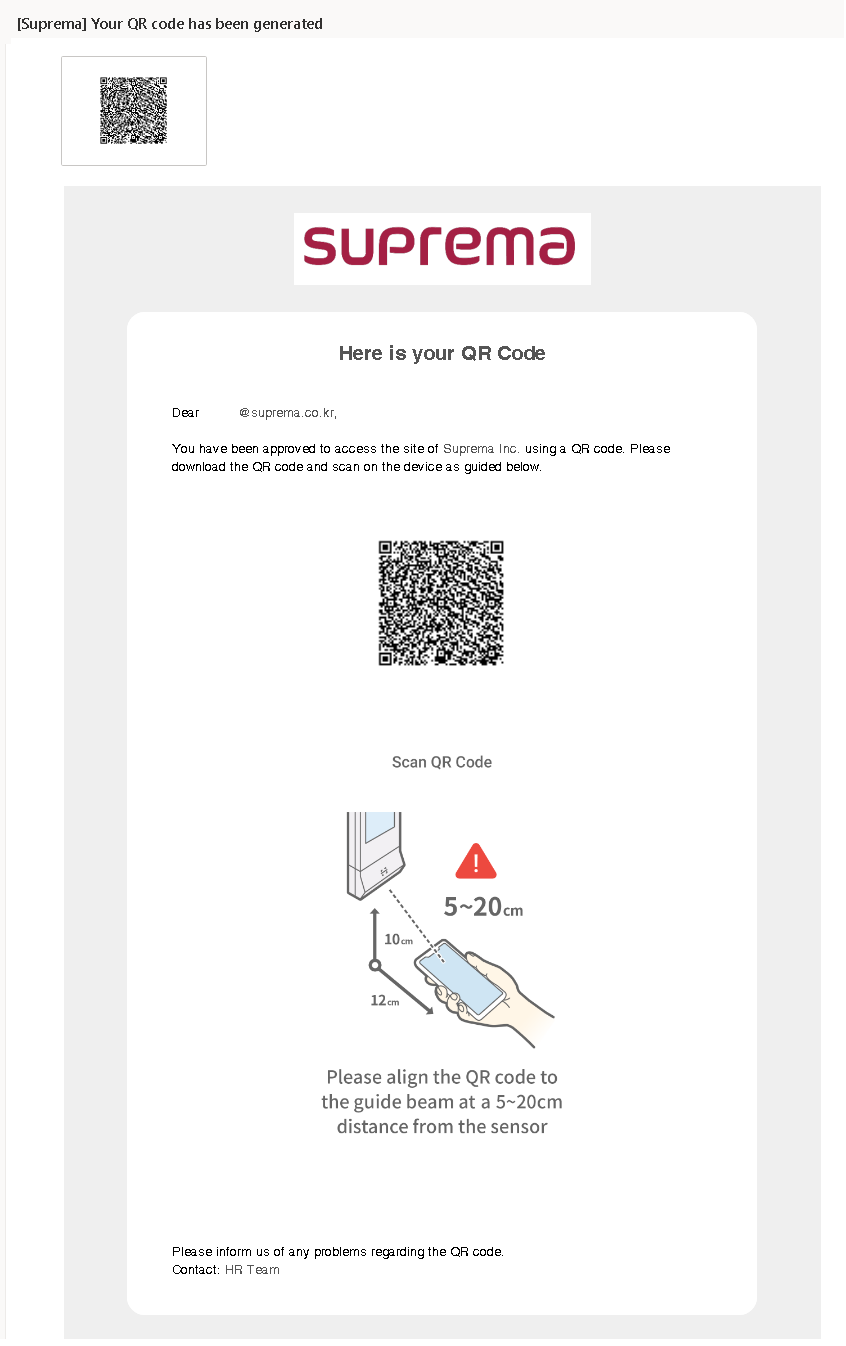

Users can confirm the email on a mobile or a PC.
The attached QR image file or, use the QR in the email content are available to use.
