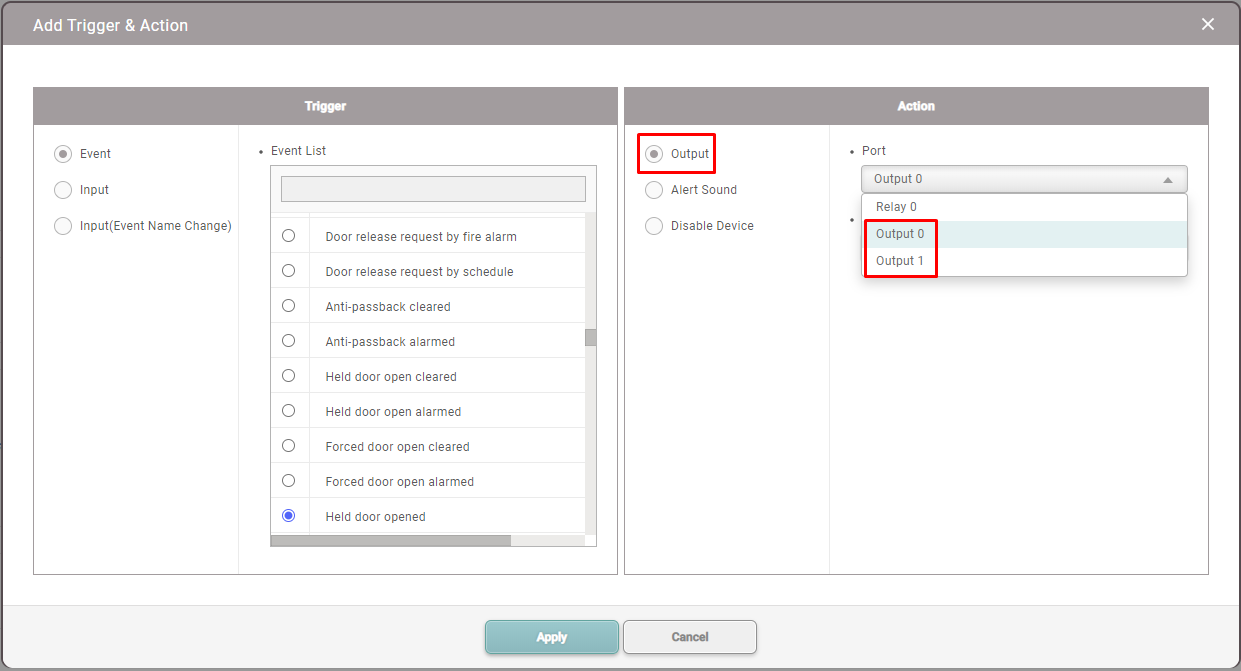

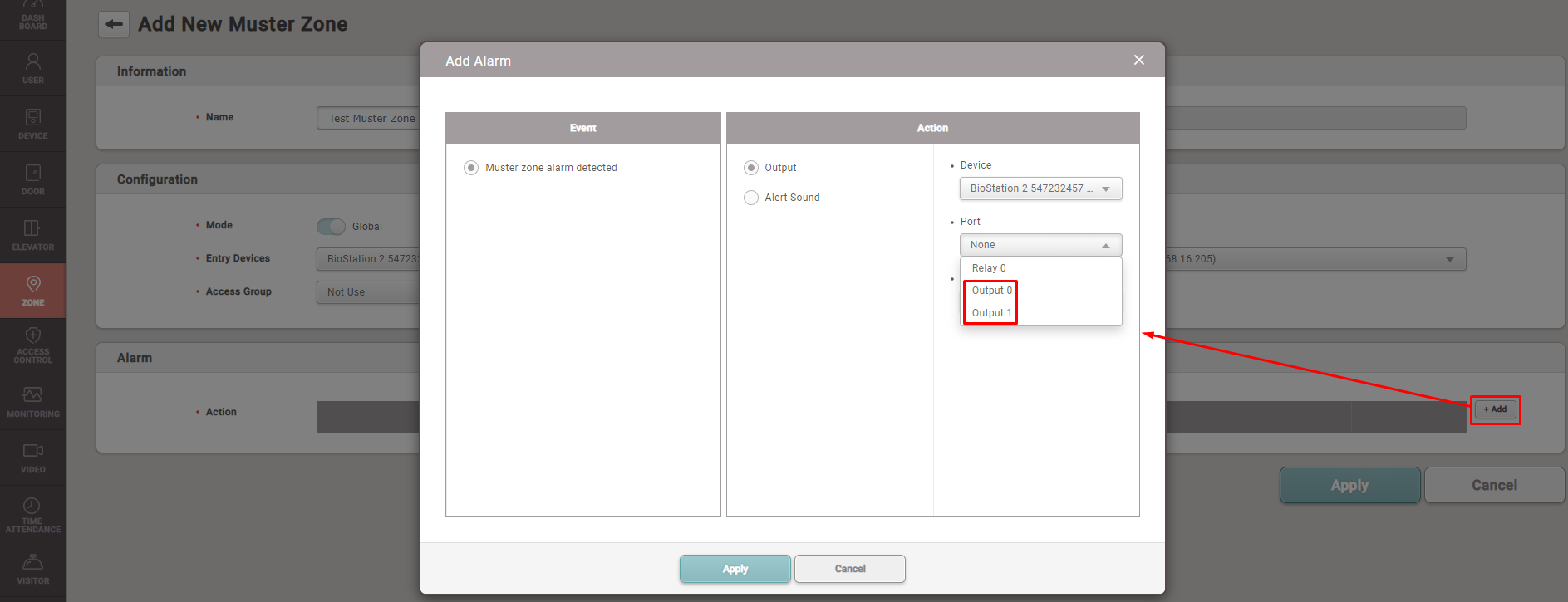

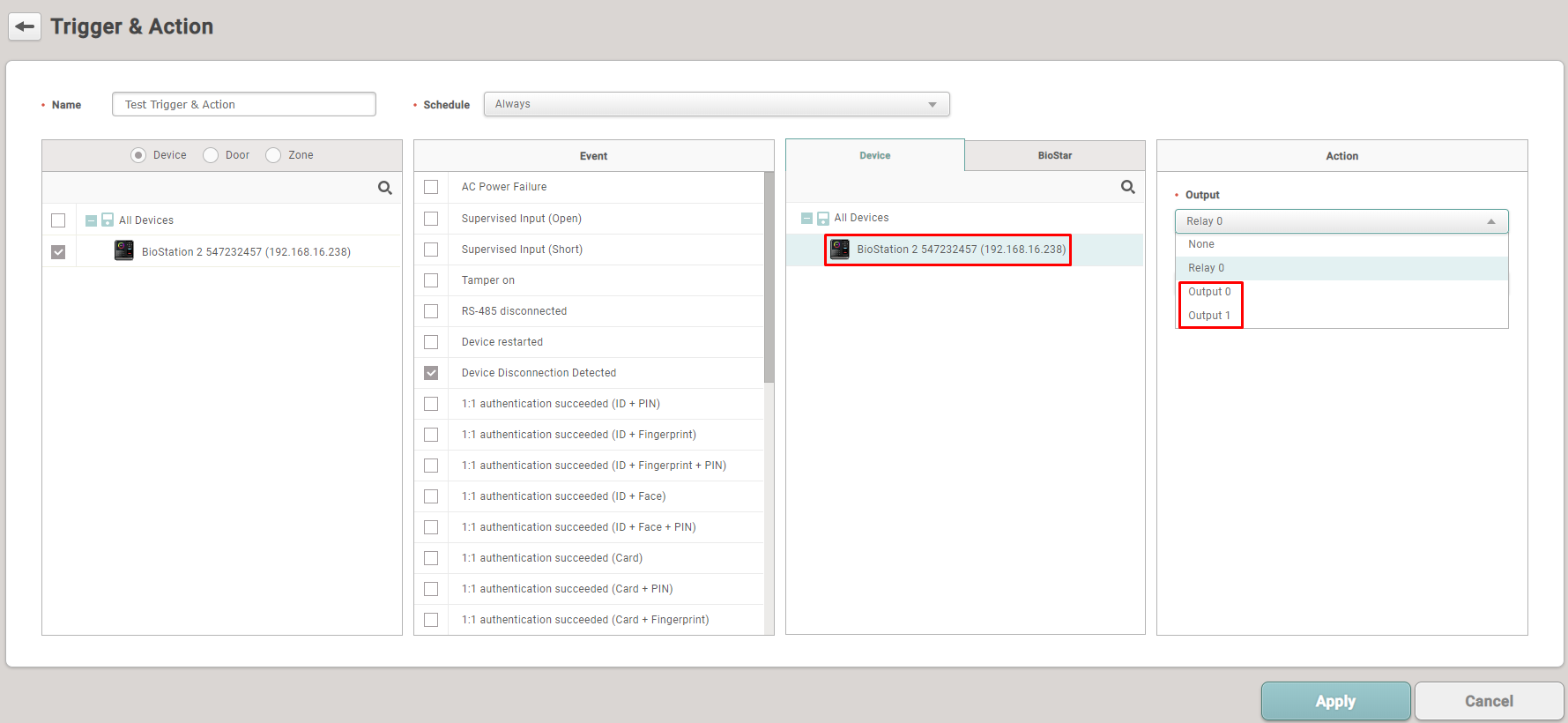

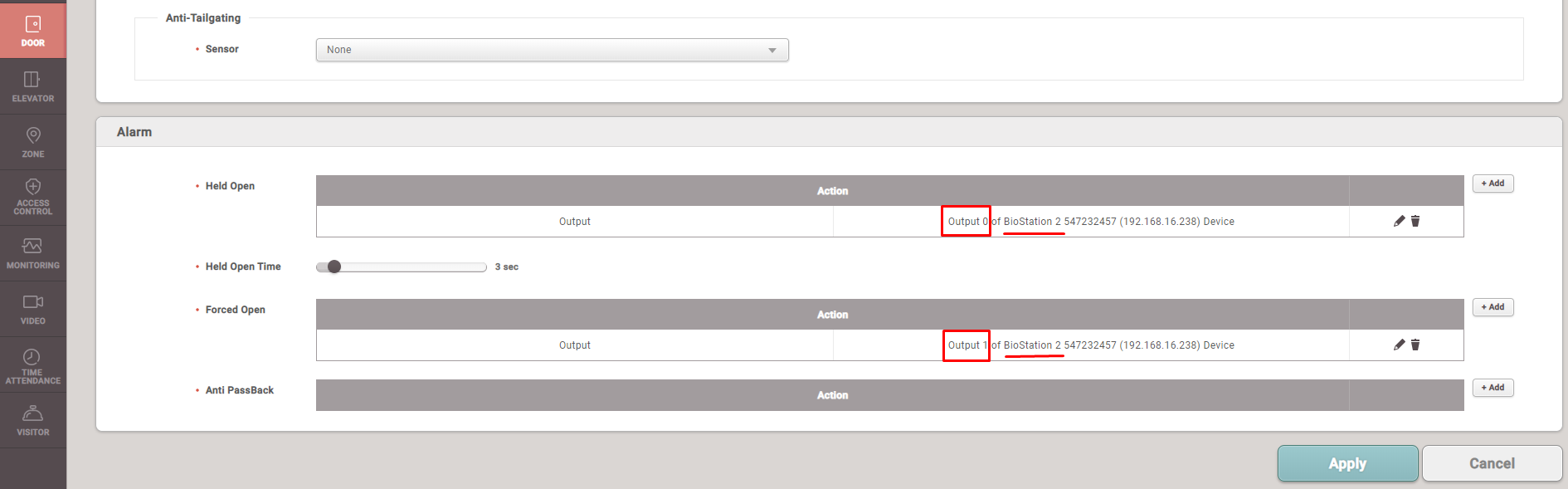

Old revisions Add to book Export to PDF Table of Contents Improved Trigger & Actions to Be Able to Use the Output Port of the BioStation 2 1. Configure at Device Trigger & Action 2. Configure at BioStar 2 Global Trigger & Action 3. Configure at BioStar 2 Door Alarm 4. Configure at BioStar 2 Zone Alarm Book Creator Add this page to your book Book Creator Remove this page from your book Manage book (0 page(s)) Help Improved Trigger & Actions to Be Able to Use the Output Port of the BioStation 2 As you know, BioStation 2 is the only Suprema device that has a separate TTL Output port. In order to support various installation environments of customers, Suprema improved its function to configure Trigger & Action through the TTL Output port of BioStation 2. Before using this feature, you should match both BioStar 2 software and BioStation 2 firmware version as follows. BioStar 2 SW : v2.8.3 or above BioStation 2 Firmware : v1.9.0 or above 1. Configure at Device Trigger & Action BioStar 2 > Device > BioStation 2 > Advanced > Trigger & Action 2. Configure at BioStar 2 Global Trigger & Action BioStar 2 > Settings > Trigger & Action 3. Configure at BioStar 2 Door Alarm BioStar 2 > Door > Alarm 4. Configure at BioStar 2 Zone Alarm BioStar 2 > Zone > Alarm
