Product Specification & Dimensions

Product Specifications


Category Feature Specifications
Credentials Biometric Face
RF card BS3-DB: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa
BS3-APWB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV32), FeliCa, iCLASS SE/SR/Seos
RF detection distance3) EM/HID Prox/MIFARE/DESFire/HID iCLASS: 30 mm, FeliCa: 15 mm
Mobile NFC, BLE
Barcode and QR code Supported
General CPU 1.5 GHz Quad Core
Memory 32 GB Flash + 4 GB RAM
Crypto chip Supported
LCD type 5.5“ IPS color LCD
LCD resolution 720 x 1280 pixels
Sound 16bit
Operating temperature -20°C to 50°C
Storage temperature -40°C to 70°C
Operating humidity 0% to 80%, non-condensing
Storage humidity 0% to 90%, non-condensing
Camera 2 MP 2EA
Dimensions (W x H x D) 82.5 x 171 x 23.4 (mm)
Weight ● Device
- BS3-DB: 370 g
- BS3-APWB: 380 g
● Bracket: 90 g (Including washers and bolts)
IP rating IP65
IK rating IK06
Certifications CE, FCC, IC, KC, RoHS, REACH, WEEE, UKCA, RCM
Face Recognition Distance 0.6 to 1.0 m
Recognition Height 1.4 to 1.9 m
Matching speed Within 0.3 seconds
Live Face Detection Supported
Storage capacity Max. User 100,0004)
Max. Credentials (1:N) ● Face: 50,000
Max. Credentials (1:1) ● Face: 100,000
● Card: 100,000
● PIN: 100,000
Max. Text logs 5,000,000
Max. Image logs 50,000
Interfaces Ethernet Supported (10/100/1000 Mbps, automatic MDI/MDI-X)
Wi-Fi BS3-DB: Not supported
BS3-APWB: Supported (802.11 b/ g/ n 2.4 GHz)
RS-485 1 ch Host / Slave (Selectable)
Wiegand 1 ch Input, 1 ch Output
TTL Input 3 ch Inputs
Relay 1 Relay
PoE+ BS3-DB: Not supported
BS3-APWB: Supported (IEEE 802.3at compliant)
Intercom Supported
RTSP Supported
USB USB 2.0 (Host)
USB expansion port Supported
Tamper Supported
Electrical Power DC 12 V (current: 2.5 A) or DC 24 V (current: 1.2 A)
Switch input VIH Min.: 3 V / Max.: 5 V
Switch input VIL Max.: 1 V
Switch pull-up resistor 4.7 kΩ (The input ports are pulled up with 4.7 kΩ)
Wiegand output VOH 4.8 V or higher
Wiegand output VOL 0.2 V or lower
Wiegnad output pull-up resistor Internal pull-up to 1 kΩ
Relay 2 A @ 30 VDC Resistive load
1 A @ 30 VDC Inductive load

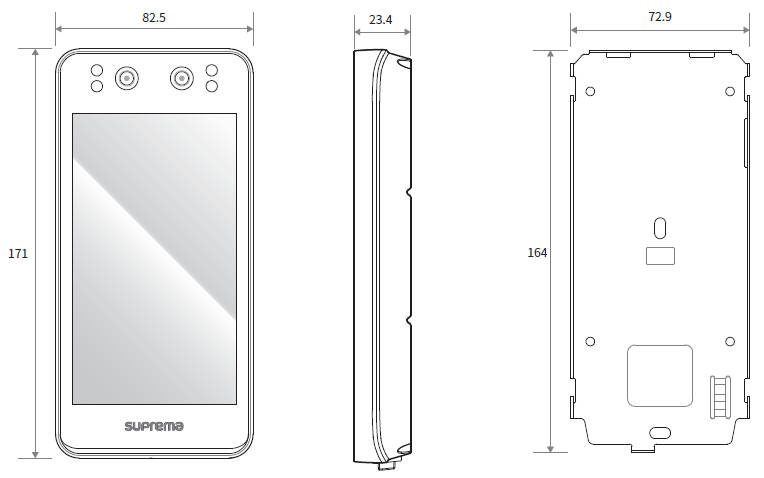

Dimensions


(Unit: mm)

1) , 2)
The DESFire EV2/EV3 card is backward compatible with the DESFire EV1 card, so it provides the CSN and smart card functions, including those of the DESFire EV1 card.
3)
The RF detection distance may vary depending on the installation environment.
4)
Refers to the number of registered users without credential data.
