The Configuration For the Connection of When Using the “Secure Communication With Device” Function

This article introduces the configuration for the connection when using the “Secure communication with device” function in both “Server to Device” mode and “Device to Server” mode.
You can find the concept of “Secure communication with device”, as well as the configuration for the connection when using the “Secure communication with device”.

What is the “Secure communication with device”?

To secure the data that will be transferred between the BioStar 2 server and the Suprema Device, the users can use the specific function “Secure communication with device” in BioStar 2. If the function is enabled, the certificate will be transferred from the BioStar 2 server to the Suprema device. To know how you can enable the function, please refer to the following procedures.

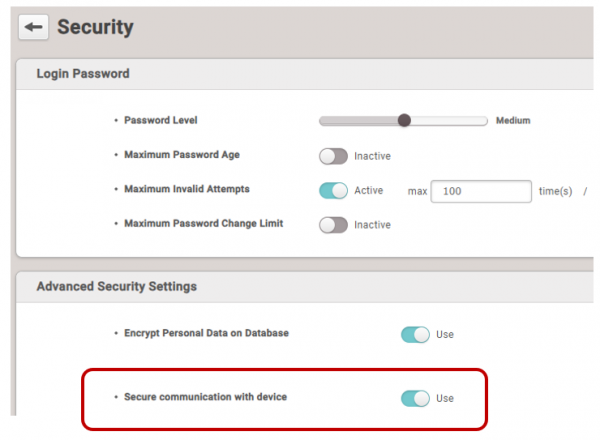

• Add the device to the BioStar 2 server > Go to Settings > Security > Advanced Security Settings > Enable the function “Secure communication with device” and click Apply.


• For more details, please refer to the following article.
  https://kb.supremainc.com/knowledge/doku.php?id=en:how_to_configure_secure_communication_between_device_and_server_tls_ssl

How will the Suprema device be connected to BioStar 2 when the “Secure communication with device” function has been enabled?
Once the “Secure communication with device” function have been enabled, the BioStar 2 server will transfer the certificate to the Suprema device in order to configure the secure communication between them. And, in order to understand which process is applied when using either “Device to Server” mode or “Server to Device” mode, please refer to the following two cases.

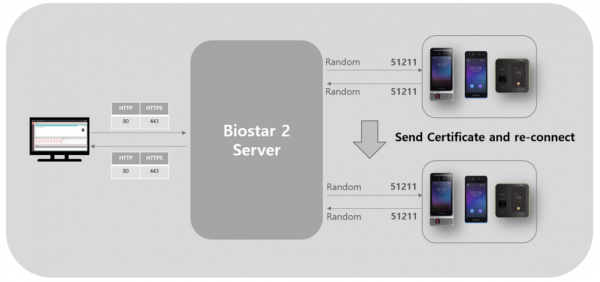

• Step 1. The Suprema device needs to be connected to BioStar 2 first, according to the following sequences.

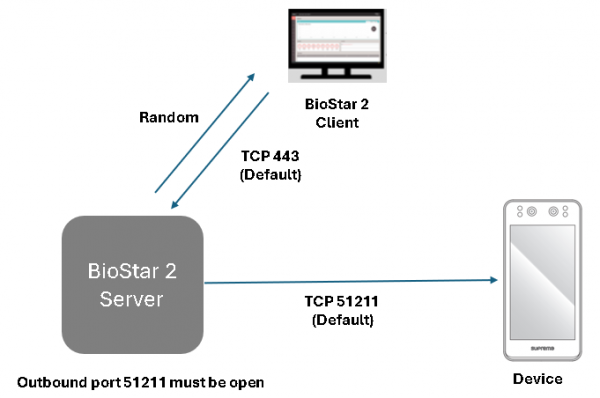

  1. The BioStar 2 Server sends a request for the connection using a random port to the port of the Suprema device 51211.
  2. When the device receives a connection request, it sends a response using port 51211 to the BioStar 2 Server's random port.
  3. The Suprema device is connected to the BioStar 2 server.
• Step 2. If you enable the “Secure communication with device” function in BioStar 2, the BioStar 2 Server sends the certificate for secure communication by using its random port to the Suprema device's port 51211 through the existing connection.
• Step 3. After completing transferring the certificate, the existing connection between the Suprema device and the BioStar 2 server is temporarily disconnected.
• Step 4. BioStar 2 server is reconnected with the Suprema device again by using the same sequences of Step 1.


  Note that: BioStar 2's random port to be used at this time may not be the same as the one used in Step 1.

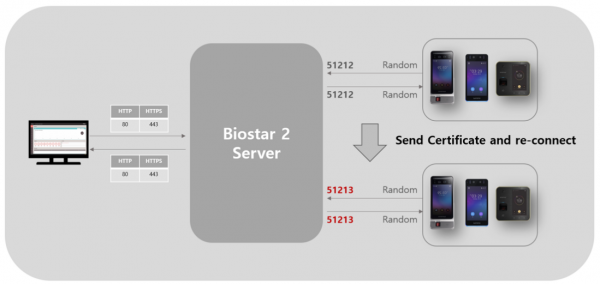

• Step 1. The Suprema device needs to be connected to BioStar 2 first, according to the following sequences.

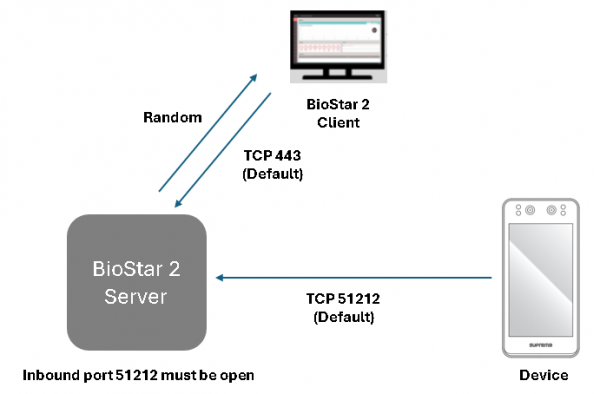

  1. The Suprema device sends a request for the connection using a random port to the port of the BioStar 2 server 51212.
  2. When the BioStar 2 server receives a connection request, it sends a response using port 51212 to the Suprema device's random port.
  3. The Suprema device is connected to the BioStar 2 server.
• Step 2. If you enable the “Secure communication with device” function in the BioStar 2, the BioStar 2 Server sends the certificate for secure communication by using its port 51212 to the Suprema device's random port through the existing connection.
• Step 3. After completing transferring the certificate, the existing connection between the Suprema device and the BioStar 2 server is temporarily disconnected.
• Step 4. The BioStar 2 server is reconnected with the Suprema device again using the same sequences as Step 1. However, at this time of reconnection, the BioStar 2 port to be used is not 51212, but 51213.


  Note that: The random port of the Suprema device used at this time may not be the same as the one used in Step 1.
