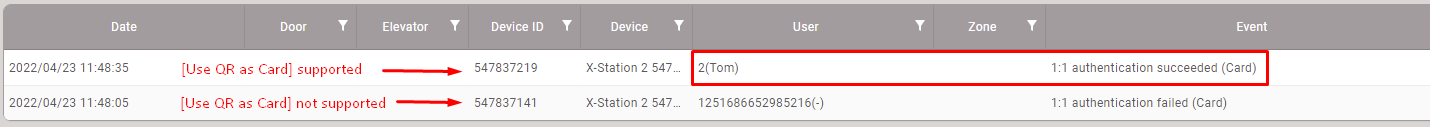

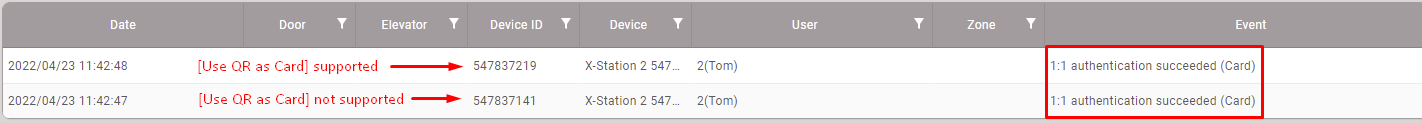

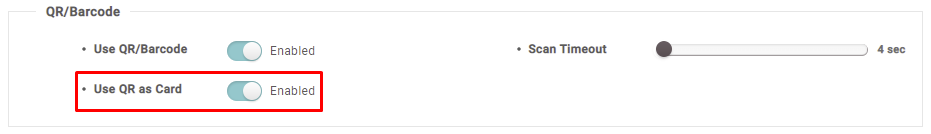

Old revisions Add to book Export to PDF Fold/unfold all Table of Contents Added the Use QR as Card Option Feature notice 1. 'Use QR as Card' is available only when 'Use QR/Barcode' is Enabled. 2. This function is not supported for BioStar 2 QR. 3. This function is not supported for Smart Card. Sample user scenario 1. A user (user ID 2, Tom) has been assigned a CSN card. 2. Prepare the X-Station 2 QR model device. 3. User Tom taps the CSN card (RF card) he has on the X-Station 2. At this time, both X-Station 2 return 'Access Granted' for user Tom. 4. Generates a QR code with the same value as the CSN that Tom has. 5. User Tom tries to authenticate on X-Station 2 with the above QR code. Only enabled devices with the [Use QR as Card] function will return 'Access Granted.' Book Creator Add this page to your book Book Creator Remove this page from your book Manage book (0 page(s)) Help Added the Use QR as Card Option Affect Products & Versions BioStar 2 BioStar v2.8.16 or above Device & Firmware X-Station 2 v1.2.0 or above X-Station 2 with QR hardware sensor models (XS2-QAPB, XS2-QDPB) support in default after upgrading firmware. Other X-Station 2 models (XS2-DPB, XS2-ODPB, XS2-APB, XS2-OAPB) needs to activate license for Camera QR feature. (Contact supremainc.com) In the previous BioStar 2, when a customer using a CSN card tried to authenticate a user through a QR code with the same value as the CSN, customers could not use it due to the difference in authentication logic between QR and CSN. Suprema allows authentication with a QR code of the same data as the issued CSN card or Wiegand card to reflect the market requirements. To use this function, BioStar 2 and X-Station 2 firmware versions must match. [Device > X-Station 2 detail page > Authentication > QR/Barcode] Background This feature is useful who is looking for Integration with Visitor Management System + QR code. With 3rd party Visitor Management System, you can generate the QR code for Visitors. However, this data is not available to use with Suprema system. In the previous BioStar 2 and X-Station 2 FW, you could not synchronize this data to Suprema X-Station 2 because X-Station 2 QR can only use BioStar 2 QR or ASCII QR data type. From 2.8.16, you can use the QR code in decimal as X-Station 2 User credential. How it works Suprema is offering BioStar 2 API - a server-level RESTful API - with which you can communciate with a BioStar 2 server. The API allows you to update BioStar 2 User from the server with the decimal data of QR code in the CSN card information of BioStar 2 user. Once you get the QR raw data from the 3rd party Visitor Management system, you can integrate it with BioStar 2 server. Feature notice 1. 'Use QR as Card' is available only when 'Use QR/Barcode' is Enabled. 2. This function is not supported for BioStar 2 QR. 3. This function is not supported for Smart Card. Sample user scenario 1. A user (user ID 2, Tom) has been assigned a CSN card. 2. Prepare the X-Station 2 QR model device. For comparison, we prepared one device supported by the [Use QR as Card] function and one not supported. 3. User Tom taps the CSN card (RF card) he has on the X-Station 2. At this time, both X-Station 2 return 'Access Granted' for user Tom. 4. Generates a QR code with the same value as the CSN that Tom has. QR type Free Text QR value 1251686652985216 QR sample 5. User Tom tries to authenticate on X-Station 2 with the above QR code. Only enabled devices with the [Use QR as Card] function will return 'Access Granted.'
